Above 65% of new broadband deployments in urban United States projects now require fiber-to-the-home. That fast transition toward full-fiber networks highlights the growing need for reliable line output equipment.
Compact Fiber Unit
Fiber Ribbon Line
Compact Fiber Unit
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) provides automated FTTH cable production line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics combines machines and control systems. It turns out drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, and LANs.
This advanced FTTH cable making machinery offers measurable business value. It enables higher throughput and consistent optical performance with low attenuation. It also complies with IEC 60794 and ITU-T G.652D / G.657 standards. Customers see reduced labor costs and material waste through automation. Full delivery services include installation and operator training.
The FTTH cable production line package contains fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also includes SZ stranding line, fiber ribbone line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs commonly use Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model includes on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. It additionally incorporates lifetime technical support and operator training. Clients are typically required to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Main Takeaways
- FTTH cable line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Integrated turnkey packages from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular setups use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Built-in modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Modern FTTH cable manufacturing systems reduces labor, waste, and improves optical consistency.
- Service coverage includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Line Technology
The fiber optic cable production process for FTTH demands precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. This method boosts yield and speeds up market entry. It addresses the needs of both residential and enterprise deployments in the United States.
Below, we outline the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment shapes product quality, cost, and flexibility for various cable designs.
Modern Fiber Optic Cable Manufacturing Components
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems deliver 600–900 µm jackets for indoor and drop cables.

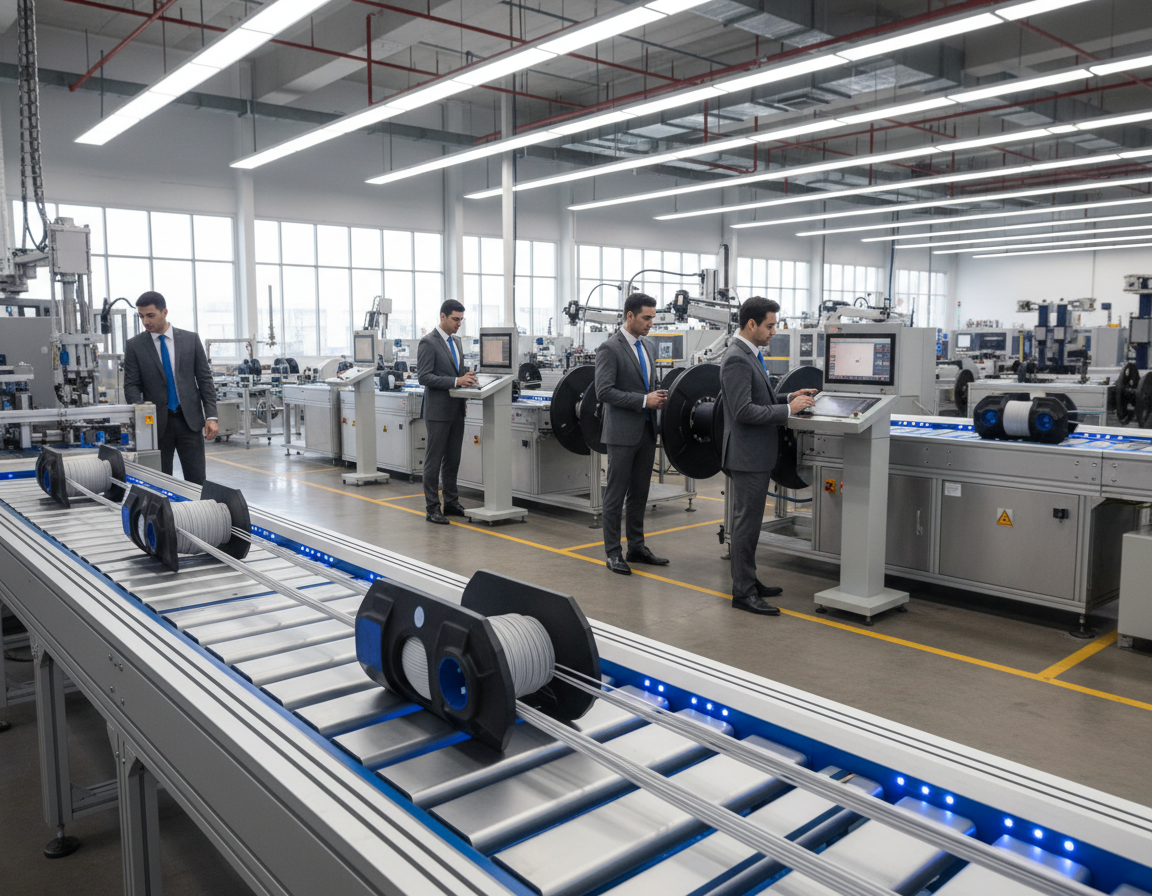

SZ stranding lines use servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines use multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations produce PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
Evolution From Traditional To Modern Production Systems
Early plants used manual as well as semi-automatic modules. Lines were separate, featuring hand transfers as well as basic controls. Current facilities shift toward PLC-controlled, synchronized systems using touchscreen HMIs.
Remote diagnostics as well as modular turnkey setups enable rapid changeover between simplex, duplex, ribbon, together with armored formats. That transition supports automated fiber optic cable manufacturing and lowers labor dependence.
Technologies Driving Innovation In The Industry
High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters supports consistent extrusion quality.
High-speed UV curing and water cooling accelerate profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Operation | Typical Unit | Advantage |
|---|---|---|
| Fiber draw process | Draw tower with closed-loop tension feedback | Stable core diameter and reduced attenuation |
| Coating stage | UV-curing dual-layer coaters | Uniform 250 µm coating for durability |
| Coloring | Multi-channel fiber coloring machine | Reliable color identification for field work |
| Fiber stranding | SZ stranding line, servo-controlled (up to 24 fibers) | Accurate lay length across ribbon and loose tube designs |
| Extrusion & sheathing | Energy-saving extruders with multi-zone heaters | PE/PVC/LSZH jackets with tight dimensional control |
| Cable armoring | Armoring units for steel tape or wire | Improved outdoor mechanical protection |
| Profile cooling & curing | Cooling troughs plus UV dryers | Quicker profile setting with fewer defects |
| Inline testing | Inline geometry and attenuation measurement | Real-time quality control and compliance reporting |
Compliance with IEC 60794 together with ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials support diverse applications, from FTTH drop cable production to armored outdoor runs as well as data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment allows firms meet tight tolerances. This choice enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.
Essential Equipment In Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter together with mechanical strength. It prepares the fiber for stranding as well as cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, as well as surface quality. It protects the glass during handling.
Producers aiming for high-yield, fast-cycle fiber optic cable production must match material, tension, together with curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, together with UV ovens. Modern systems achieve high line output rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends as well as supports consistent coating thickness across long runs.
Single and dual layer coating applications meet different market needs. Single-layer setups provide basic mechanical protection as well as a simple optical fiber cable manufacturing machine footprint. Dual-layer lines combine a harder inner layer featuring a softer outer layer to improve microbend resistance together with stripability. That helps when fibers are prepared for connectorization.
Temperature control together with curing systems are critical to final fiber performance. Multi-zone heaters together with Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens together with water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-consistency single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws and barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron provide robust control and monitoring for continuous runs.
Operational parameters guide preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Optical Preform Handling
The fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. That stage sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback as well as tension management. That prevents microbends. Cooling zones together with closed-loop systems keep geometry stable during the optical fiber cable manufacturing process. Modern towers log metrics for traceability together with rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. That connection ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. Such capabilities help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.
| Feature | Function | Target Value |
|---|---|---|
| Furnace with multiple zones | Consistent preform heating to stabilize glass viscosity | Consistent draw speed and refractive profile |
| Live diameter control | Preserve core/cladding geometry and lower attenuation | Diameter tolerance of ±0.5 μm |
| Cooling and tension control | Prevent microbends and control fiber strength | Target tension based on fiber type |
| Automated pay-off integration | Secure handoff to secondary coating and coloring | Matched feed rates to avoid slip |
| On-line test stations | Check attenuation, tensile strength, and geometry | Single-mode loss target of ≤0.2 dB/km after coating |
Advanced SZ Stranding Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. That makes it ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, together with haul-off units maintain constant linear speed together with target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.
Integration using a downstream fiber cable sheathing line streamlines line output as well as lowers handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs featuring stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality as well as reduce mechanical stress.
Optional reinforcement as well as armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire using adjustable tension to meet specific mechanical ratings.
Built-in consistency control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, together with optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows as well as cut rework.
This combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. That setup raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring Machine And Identification Systems
Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
The following sections discuss standards together with coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. That consistency aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. This support reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.
Specialized Solutions For Fiber In Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried as well as industrial applications. This controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the rely on of steel tape or wire units using adjustable tension together with wrapping geometry. That process benefits armored fiber cable manufacturing by preventing compression of fiber elements. This system also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring using downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement together with align using sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility using armored fiber cable line output modules, ease of changeover, together with service support for field upgrades. These factors reduce downtime and protect investment in an optical fiber cable line output machine.
Fiber Ribbon Line And Compact Fiber Unit Manufacturing
Current data networks require efficient assemblies that pack more fibers into less space. Producers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That production method employs parallel processes as well as precise geometry to meet the needs of MPO trunking as well as backbone cabling.
Advanced equipment helps ensure accuracy and speed in line output. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, together with shear/stacking modules. In-line attenuation as well as geometry testing reduce rework, maintaining high yields.
Compact fiber unit production focuses on tight tolerances and material choice. Extrusion and buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter together with simplify routing. They are compatible featuring MPO trunking together with high-count backbone systems.
Production controls as well as speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC together with HMI touch-screen control enable quick parameter changes and synchronization across multiple lines.
Quality as well as customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, as well as turnkey integration using sheathing as well as testing stations support bespoke fast-cycle fiber cable line output line requirements.
| Production Feature | Ribbon Line | Compact Fiber System | Benefit To Data Centers |
|---|---|---|---|
| Line speed | Up to 800 m/min | Up to 600–800 m/min | More output for large deployment projects |
| Core processes | Automated alignment, bonding, and curing | Extrusion, buffering, and tight-tolerance winding | Improved geometry consistency with lower insertion loss |
| Primary materials | Engineered tapes and bonding resins | PBT, PP, plus LSZH buffer and jacket materials | Long-term reliability and safety compliance |
| Quality testing | In-line attenuation and geometry checks | Precision dimensional control with tension monitoring | Fewer field failures and quicker deployment |
| Integration | Integrated sheathing with splice-ready stacking | Modular compact units for dense cable solutions | Simplified MPO trunking and backbone construction |
How To Optimize High-Speed Internet Cables Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. This ensures optimal output for flat, round, simplex, and duplex FTTH profiles.
FTTH Application Cabling Systems
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In Fiber Pulling Process
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. These tests verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
How Optical Fiber Drawing Meets Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. That reduces ramp-up time for US customers.
Final Thoughts
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For U.S. manufacturers and system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. These systems simplify automated fiber optic cable manufacturing and reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs and turnkey proposals, together with schedule engineer commissioning together with operator training.
