In this useful guide, compression adapter fittings are outlined as components that connect tubing and smaller pipe runs for reliable plumbing work. It is intended for homeowners, licensed plumbers, and customers searching for replacement parts at Installation Parts Supply.

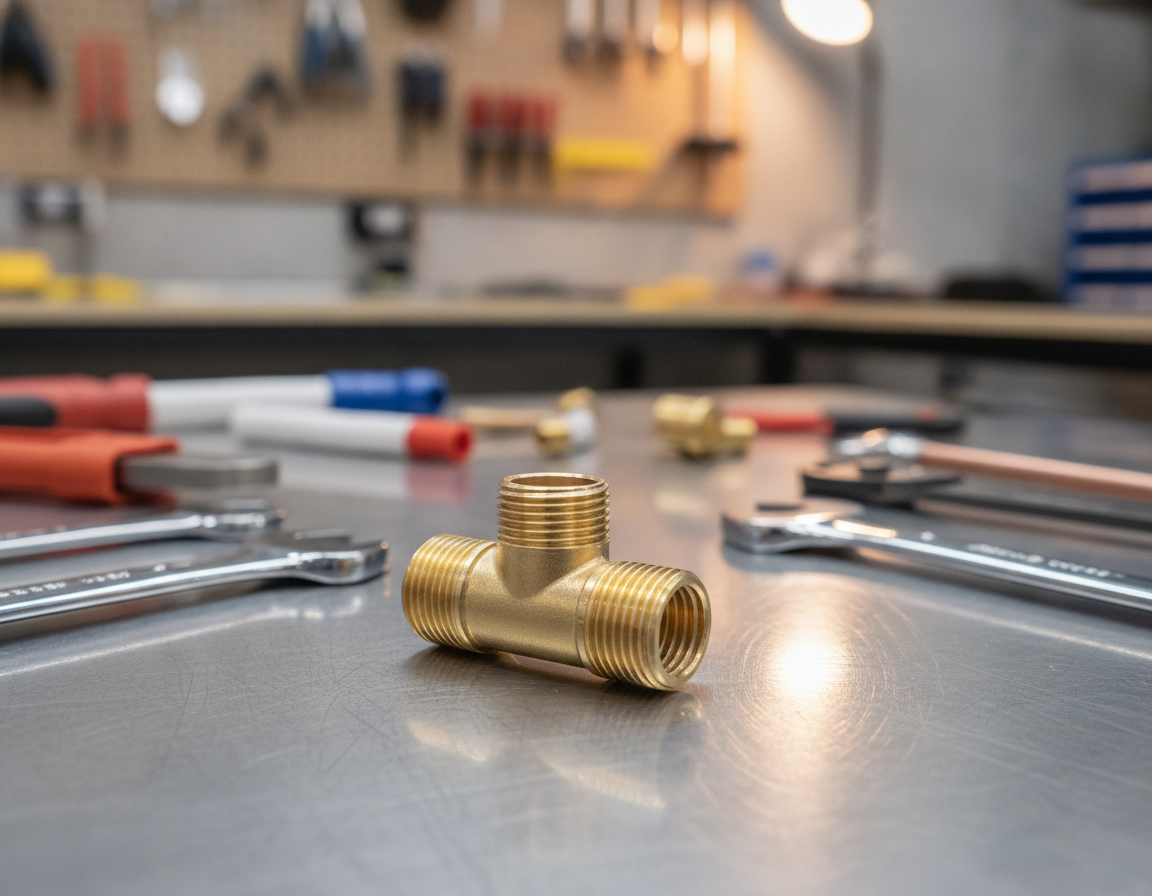

3 8 Male To 1 2 Female
A compression adapter makes its seal when the ferrule is compressed against the tubing and fitting body, building a leak-resistant connection. They are frequently used in residential, commercial, and plant plumbing systems.
This guide covers common types, sizes, materials, and fitting techniques. It also includes problem diagnosis and real-world applications. Special attention is given to 1/2-to-3/8 conversions and to correctly matching thread types like NPT and compression. Durability is stressed with brass, copper, or stainless steel options.
Always observe the manufacturer’s torque and turn specifications. Use tubing inserts for soft tubing like PEX when required. Do not swap ferrules, nuts, or fitting bodies from different brands, because mismatched parts can create leaks, galling, or poor seating.
Key Takeaways
- A compression adapter grips when its ferrule is compressed onto the tubing.
- Installation Parts Supply stocks common sizes and materials for most jobs.
- Select materials—brass, copper, or stainless—based on pressure and environment.
- When adapting 3/8 and 1/2 in. fittings, accurately match both size and thread type.
- Adhere to manufacturer torque/turn specs and use inserts for soft tubing.
Compression Adapters And Compression Fittings Explained
Compression adapters connect tubing by mechanically squeezing a ferrule onto the tubing outer diameter. These fittings are different from threaded connectors and push-fit types in how they form a seal. A compression adapter relies on metal deformation, not thread engagement or internal grab rings.
The sections below explain each component and how the pieces create the connection.
What A Compression Adapter Is And How It Differs From Other Fittings
A compression adapter is a compression-style fitting that couples tubing or pipe without welding. As the compression nut is turned, it seats the ferrule into the tapered fitting body. That approach is unlike threaded joints, which depend on matched threads and thread sealant. It is also not the same as push-fit fittings, which typically use elastomeric seals and retention clips for fast installation.
Key Parts: Nut, Ferrule Olive, And Fitting Body
The main pieces are the compression nut, the compression ferrule, and the fitting body. The nut provides the axial force needed for sealing. The ferrule, also called an olive, slightly deforms into the tubing surface. Inside the fitting body, a tapered bore seats the ferrule into its sealing position.
Some designs include a rear ferrule to reduce stress on the seal and allow easier disassembly.
How Compression Fittings Make A Reliable Seal
When the compression nut is turned down, it forces the ferrule into the taper of the fitting body. This radial compression locks the ferrule against the tubing and forms a line-contact seal. When the ferrule is properly seated, the joint resists leaks under normal pressure and temperature conditions.
Compression joints and compression fittings fit copper, brass, stainless steel, and many hard plastics. Installers should follow manufacturer torque or turn guidance and confirm tubing compatibility before assembly.
| Part | Function | Main Benefit |
|---|---|---|
| Nut | Axial force to drive ferrule | Controlled assembly and rework |
| Sealing ferrule | Compresses to bite into tubing | Strong metal-to-tube sealing under pressure |
| Compression fitting body | Receives ferrule in a tapered bore | Consistent alignment and a stable sealing surface |
| Second ferrule where used | Helps control front ferrule sealing force | Improved reassembly with less tube damage |
Compression Adapter Size And Conversion Guide
Adapting between 1/2-inch and 3/8-inch tubing is a common job. It is essential to select the right reducer or adapter. This supports a proper fit based on tubing OD, thread type, and gender. Choosing the correct part avoids leaks, extra fittings, and unnecessary labor.
Half inch to three eighths adaptor options
In supply-line work, the 1 2 To 3 8 Reducer and Half Inch To Three Eighths Adaptor are frequently used. These fittings convert a 1/2-inch supply feed to a 3/8-inch inlet. They may be found as one-piece reducers or two-piece compression adapter assemblies. The design supports a continuous tube seal. Always check if the listed sizes refer to tubing OD or nominal pipe size before making a purchase.
Gender-specific adapters and reducers
Fitting gender is critical when parts must mate correctly. A 1/2 Female To 3/8 Male Adapter is needed when the mating part has a male thread. For the opposite gender, a 3/8 Female To 1/2 Male Adapter is used. Mixed systems may also require configurations such as 1/2 Male To 3/8 Female Adapter or 1/2 Male To 3/8 Male Adapter.
Compression-to-compression and compression-to-NPT connections
Compression-to-compression parts, such as 1/2 Compression To 3/8 Compression adapters, maintain a continuous compression seal. For threaded pipe networks, use a 1/2 Compression To 3/8 NPT or similar conversion fitting. When connecting to NPT, apply the correct thread sealant or PTFE tape to ensure a pressure-tight joint.
- Review descriptions such as 1 2 X 3 8 Compression Adapter or 3/8 X 1/2 Adapter to confirm OD versus nominal size.
- Before cutting tubing or ordering replacements, verify thread pitch, gender, and size.
- Use trusted suppliers such as Mueller, Parker, or Watts to lower the risk of incompatible parts.
Materials And Compatibility For Reliable Connections
The choice of materials strongly affects the longevity of a joint. It is important to match the fitting material with the tubing, pressure, and fluid type. That matching process helps produce a connection that resists leaks, corrosion, and galling. For applications involving corrosive or high-purity systems, a 3 8 Male To 1 2 Female Stainless Steel option is often the most reliable.
Brass, copper, and stainless steel are the primary materials for most applications. Brass adapters generally fit common needs in potable-water and general plumbing systems. Copper fittings are well matched for copper tubing and soldered systems. Stainless steel provides valuable corrosion resistance and durability for high-pressure, chemical, or aggressive environments.
Compression joints seal best with hard tubing like copper, stainless steel, nylon, and PEEK. Flexible tubing like PEX may also be used when a correctly sized tubing insert is installed. These inserts prevent the tube from collapsing and ensure the ferrule bites properly.
PTFE tubing offers excellent media compatibility and flexibility, but it can creep under compression loads. To reduce that risk, choose fittings with redundant seals, internal O-rings, or back-up support features. When PTFE is used in compression joints, inspect the connection periodically for deformation or seepage.
Ferrule selection is essential to a reliable compression seal. Metal ferrules in brass or stainless steel offer stability across a wide temperature range. One-piece ferrules may be adequate for softer tubing applications. Two-piece ferrule systems deliver more control and can reduce galling by separating the front-ferrule and rear-ferrule functions.
Asymmetrical ferrules, with a cone-shaped profile, ensure consistent seals in precision systems. They are designed to lock their orientation. Symmetrical ferrules are simpler to assemble but may shift on hard plastics. Select ferrule geometry according to tubing hardness, pressure, temperature, and service requirements.
When selecting materials, consider the pressure, temperature, and media involved. For high-pressure, high-purity, or aggressive fluid service, choose stainless components with compatible ferrules. For routine domestic plumbing, a brass compression adapter or copper compression fitting offers a balance between cost and performance.
Compression Adapter Installation Best Practices And Common Mistakes
Effective installation begins with clean, square tubing and the correct parts. Following best practices helps reduce leaks, callbacks, and unnecessary rework. A pre-assembly checklist can save time and materials.
Pipe End Preparation: Cutting, Deburring, And Cleaning
Ensure tubing cuts are square with a quality cutter. Uneven cuts often create leaks. Deburring tools strip off sharp edges and metal slivers.
Wipe the tube ends with a lint-free cloth so oil, dirt, and metal dust are not left behind. When using soft tubing such as PEX, fit a rigid insert that matches the tubing ID. This allows the ferrule to seat properly. These steps—cutting, deburring, and cleaning—are critical for a reliable seal.
Correct Tightening: Turn Counts, Torque, And Over-Tightening Risks
Follow the manufacturer’s recommended turns after a finger-tight fit. Turn-count tightening often matches ferrule geometry more reliably than torque alone. Thread pitch is mechanically linked to how much the ferrule compresses.
Avoid over-tightening to prevent ferrule flattening and broad surface contact, which can lead to leaks. With stainless fittings, use controlled torque to reduce galling. Only use isopropyl alcohol as a temporary assembly aid when the manufacturer permits it.
Disassembly, Reassembly, And Ferrule Replacement Limits
Compression fittings can tolerate limited disassembly. After the first installation, ferrules often swage onto the tubing and may not reseal well if reused. Inspect the ferrule for deformation if you remove a fitting.
Replace ferrules showing signs of work-hardening, cracking, or poor seating. If the fitting has been repeatedly assembled and removed, replace the ferrule and consider replacing the fitting body to restore a leak-tight joint.
Common mistakes include mixing components from different manufacturers, neglecting to use inserts on soft tubing, mismatching compression and NPT threads, and ignoring cutting, deburring, and cleaning. Correcting these problems limits call-backs and extends long-term system performance.
Choosing The Correct Adapter With Better Search Terms
Choosing the right adapter begins with precise search terms and a thorough part description review. Utilize specific phrases to find the exact match, preventing the need for returns. Useful search terms may include 3/8Th To 1/2 Adapter and 1 2 X 3 8 Compression Adapter when you need faster catalog results.
Important description details include male/female orientation, diameter, and thread type. Listings such as 1/2 Female To 3/8 Male Adapter or 1 2 To 3 8 Compression Adapter show which side accepts tubing or pipe. Always verify whether the diameter refers to tubing OD or nominal pipe size.
Utilizing search variants is essential when suppliers employ different naming conventions. Try 3/8 X 1/2 Adapter, 3 8 To 1 2 Compression Adapter, or 3/8Th To 1/2 Adapter to find compatible parts across various catalogs. Suppliers such as Installation Parts Supply and Grainger may describe the same fitting under several names.
Adapter orientation should align with the mating parts. A male-to-female piece, such as 1 2 Male To 3 8 Female Adapter, is ideal for connecting a rigid run to a hose or supply line. Female-to-female adapters, on the other hand, join two male-threaded components.
Be cautious of hybrid fittings that combine different thread types. A 1/2 Compression To 3/8 NPT or a 1/2 Female Compression To 1/2 Male NPT combines compression and pipe thread on opposite ends. Use thread sealant only as recommended by the manufacturer.
Choosing the right material is necessary for corrosion resistance, compatibility, and service life. Brass and stainless steel are commonly selected choices. Check compatibility with copper, PEX, or PTFE tubing, and avoid galvanic corrosion when different metals are mixed.
In cases of uncertainty, verify part numbers and examine photos. Incorporating keywords like 3/8Th To 1/2 Adapter, 1 2 X 3 8 Compression Adapter, 1/2 Female To 3/8 Male Adapter, 1 2 To 3 8 Compression Adapter, 3 8 To 1 2 Compression Adapter, and 3/8 X 1/2 Adapter in searches can expedite the process of finding the correct match.
Finding And Fixing Compression Fitting Leaks
Compression-connection leaks and pressure loss should be handled with a methodical process. Start with a visual inspection, then use simple checks to narrow down the problem. Always prioritize safety when working with live systems.
Common Causes To Diagnose
Begin by inspecting the ferrule for gaps, uneven marks, or poor seating. Look for nuts that are cross-threaded. Ensure the tubing is cut square and fully inserted. Make sure the adapter type fits the system so thread mismatches are avoided.
Step-By-Step Diagnostic Checks
- Visually confirm ferrule seating and nut engagement.
- Turn the nut slightly and feel for smooth engagement; roughness can point to thread damage.
- Measure tubing diameter and check for surface roughness or ovality that can prevent a seal.
- Pressure-test the connection at low pressure before returning to service.
Practical Leak Fixes
If a joint appears loose, retighten to the recommended specification. Avoid over-tightening, which can deform the ferrule.
If ferrules are swaged, scored, cracked, or distorted, replace them and, when needed, replace the nut and fitting body as well. Avoid mixing ferrules and fitting bodies from different manufacturers because mismatched taper, length, or geometry can break the seal.
For soft tubing, fit an internal tubing insert sized to the pipe to stabilize the wall and improve sealing. Where corrosion is a concern, stainless steel fittings can extend service life.
Managing PTFE Cold-Flow And Creep
PTFE cold flow prevention requires specific strategies. Choose fittings with internal O-rings, redundant seals, or mechanically supported ferrule designs that limit creep.
Plan periodic inspections because cold flow may appear over time, even after the fitting was installed correctly. If PTFE shows deformation, replace the tubing and consider switching to a backup sealing method.
| Fault | Fast Check | Best Action |
|---|---|---|
| Moisture around nut | Check for loose nut or poor ferrule seating | Retighten to spec; if leak persists, replace ferrule |
| Leak appears only under pressure | Oval tubing or poor ferrule seating | Re-cut tubing, support tube wall, and fit a new ferrule |
| Slow seepage over months | Soft tubing or PTFE creep | Use PTFE cold flow prevention measures; switch to reinforced tubing or add O-ring seals |
| Damaged or crossed threads | Rough engagement when tightening | Replace damaged nut or body and tighten new parts to specification |
| Rust, pitting, or material breakdown | Look for corrosion marks or surface damage | Switch to stainless steel fittings with compatible ferrules |
Compression Adapter Applications And Use Cases
Around the home, compression adapters are useful for many plumbing tasks. They commonly adapt supply tubing to faucet, toilet, and fixture inlets. For instance, a sink supply line adapter is helpful when the sizes of sink posts or faucet inlets differ.
Home installations often involve sink and faucet supply lines, toilet connections, and appliance hookups. A water heater compression adapter is valuable for replacing an old tank or connecting a new valve. It is important to choose parts that can handle household water pressure and match the ferrule material to the tubing.
In commercial and industrial settings, the requirements are more stringent. High-pressure compression fittings may be used in industrial piping, bottled gas systems, and HVAC equipment. For demanding applications, stainless ferrules and two-piece ferrule designs can better resist creep, corrosion, and vibration.
Instrumentation and high-purity systems need fittings that minimize contamination, out-gassing, and unwanted residue. Select materials compatible with autoclave cycles and clean-room environments. Ensure the pressure ratings and traceability are met when selecting components for lab or medical equipment.
Combining parts from different manufacturers can create sealing problems. Small differences in ferrule taper, thread pitch, or ferrule length can prevent the seal. It is best to purchase fittings and ferrules from the same vendor or confirm compatibility through Installation Parts Supply or the manufacturer’s data.
When sourcing parts, carefully check product pages for exact outer diameter, thread pitch, and material. That step helps prevent mistakes in the field. Correct part selection is important for preventing leaks and extending service life in residential and commercial systems.
Compression Adapter Summary
Compression adapters are essential for joining and converting tubing, provided you select the right one and install it properly. Understanding the basic components—nut, ferrule, and body—is key. This knowledge helps in matching sizes, genders, and thread types, such as a 3/8 to 1/2 converter or a 1/2 female to 3/8 male adapter.
Adapter material is another critical selection factor. Brass and stainless steel are often specified for high-pressure, corrosive, or harsh chemical environments. Copper is often effective for many household and residential plumbing applications.
Adhere to the best installation practices. Ensure square cuts and deburr the tubing. Use inserts for soft PEX or nylon tubing. Tighten by the recommended turns, avoiding excessive force.
When troubleshooting, check ferrule seating and thread condition. Replace swaged ferrules after disassembly. Consider using redundant seals or alternative materials to prevent PTFE cold-flow.
When buying fittings, use trusted suppliers and detailed product specifications. Recommendations from Installation Parts Supply can ensure compatibility. They provide a broad selection of adapters, reducers, and conversion fittings. Choosing the right parts and following proper installation techniques will minimize leaks and extend system lifespan.
